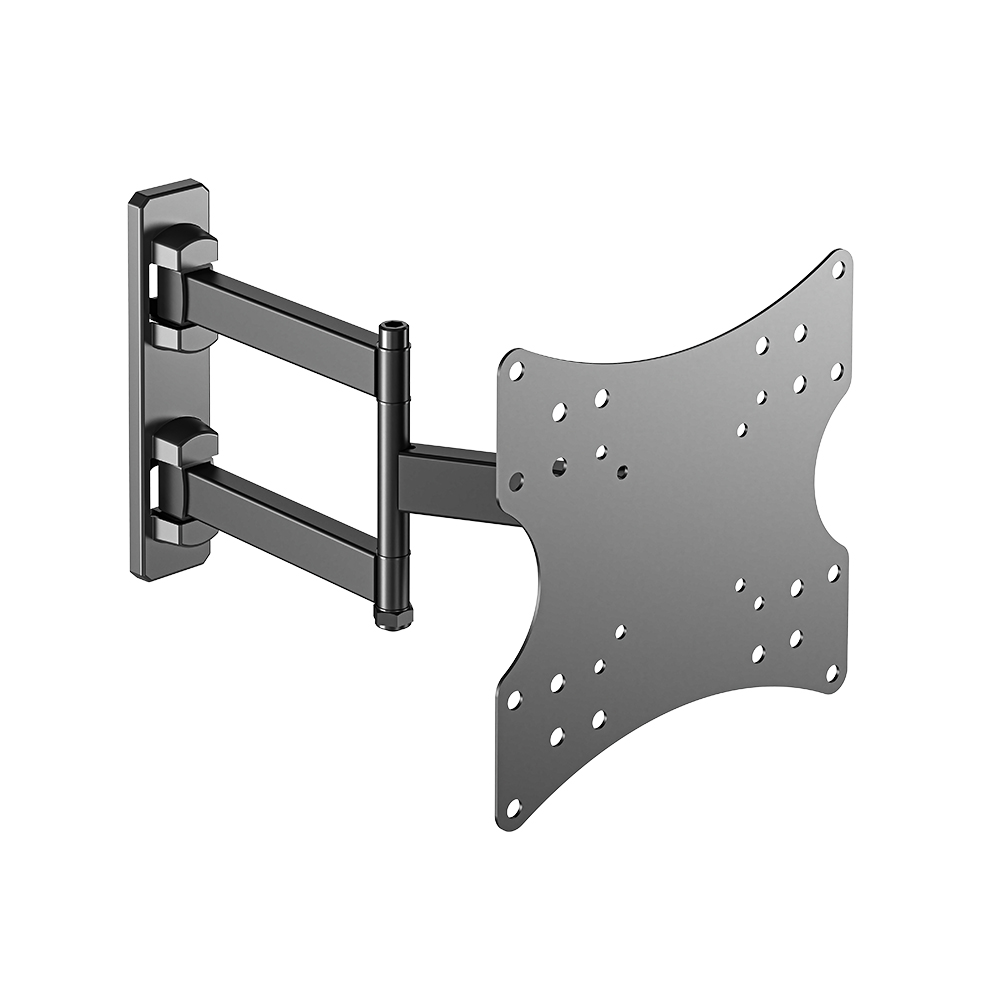

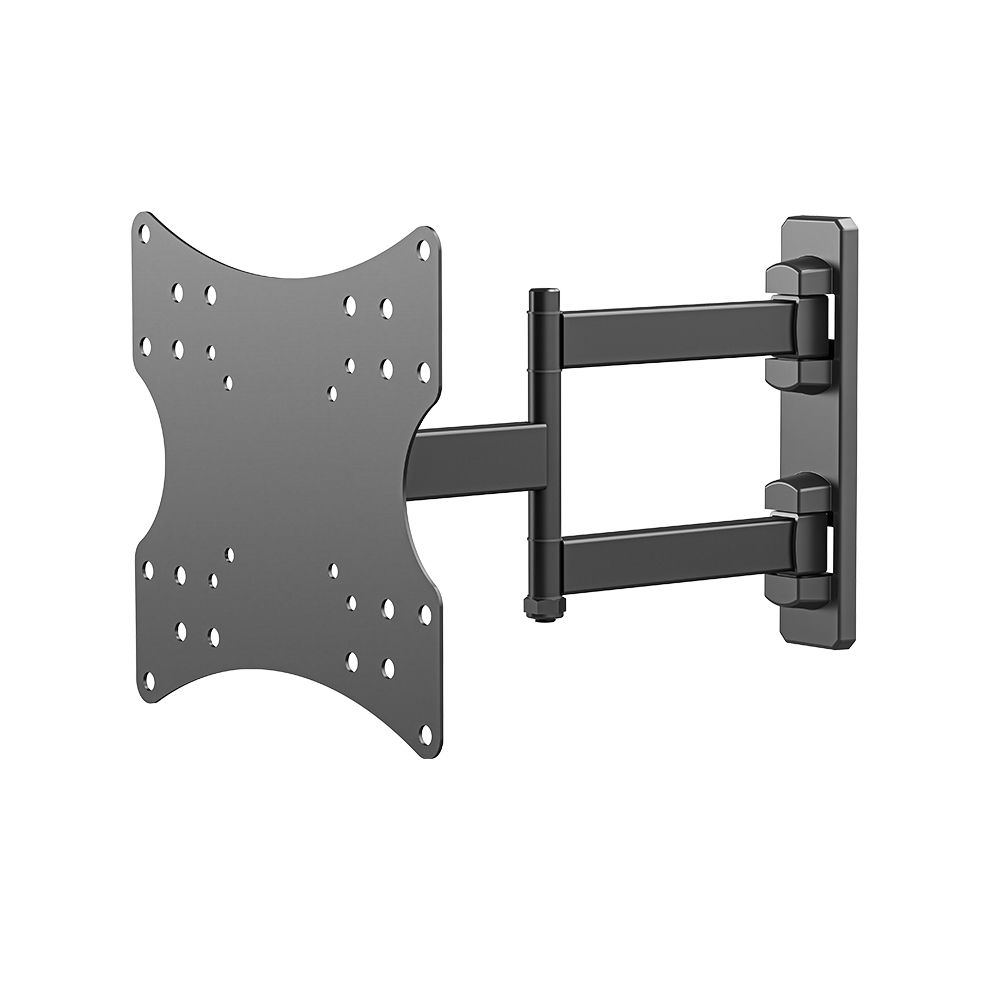

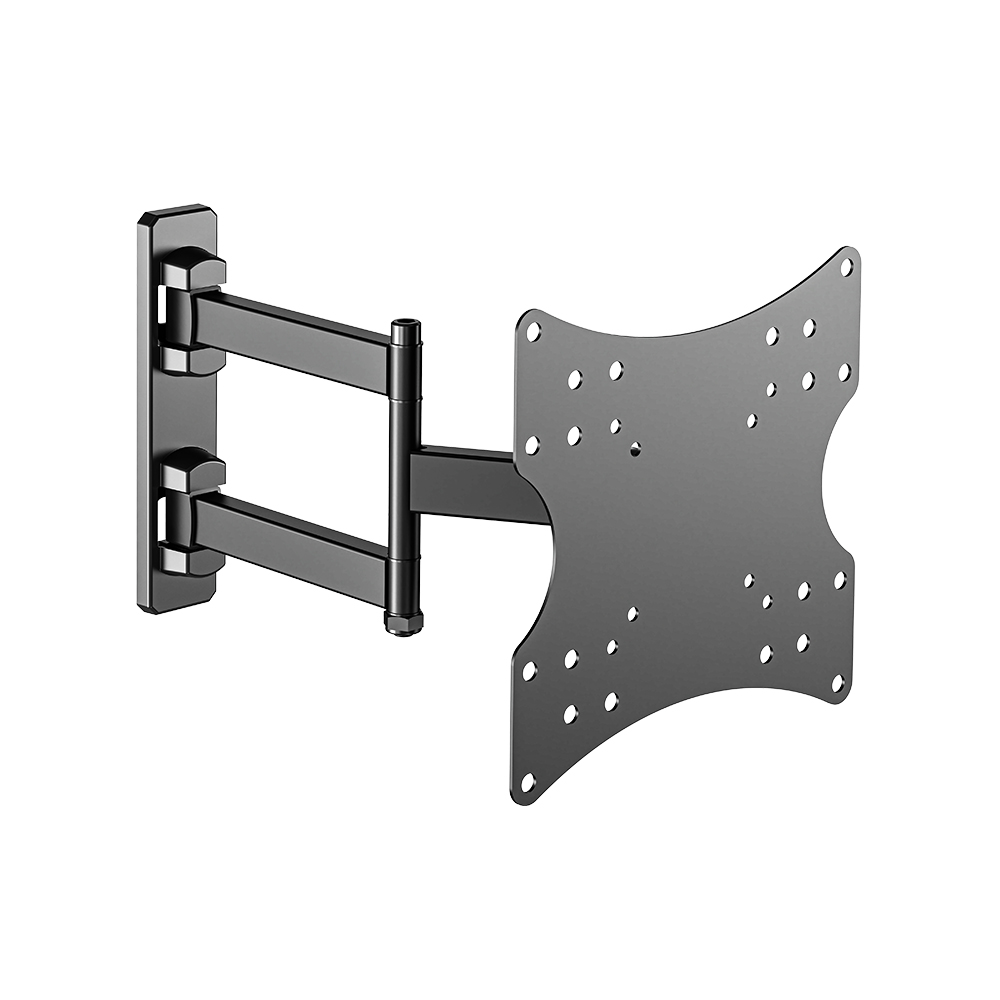

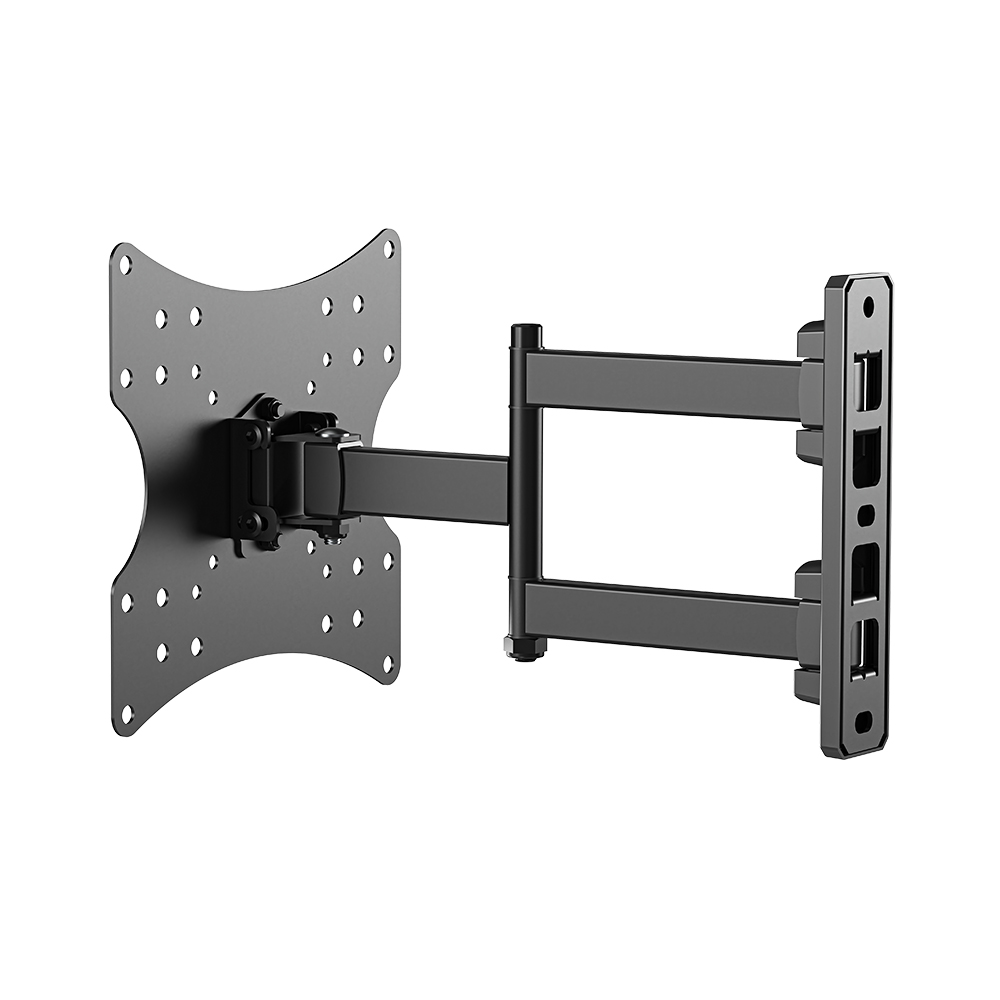

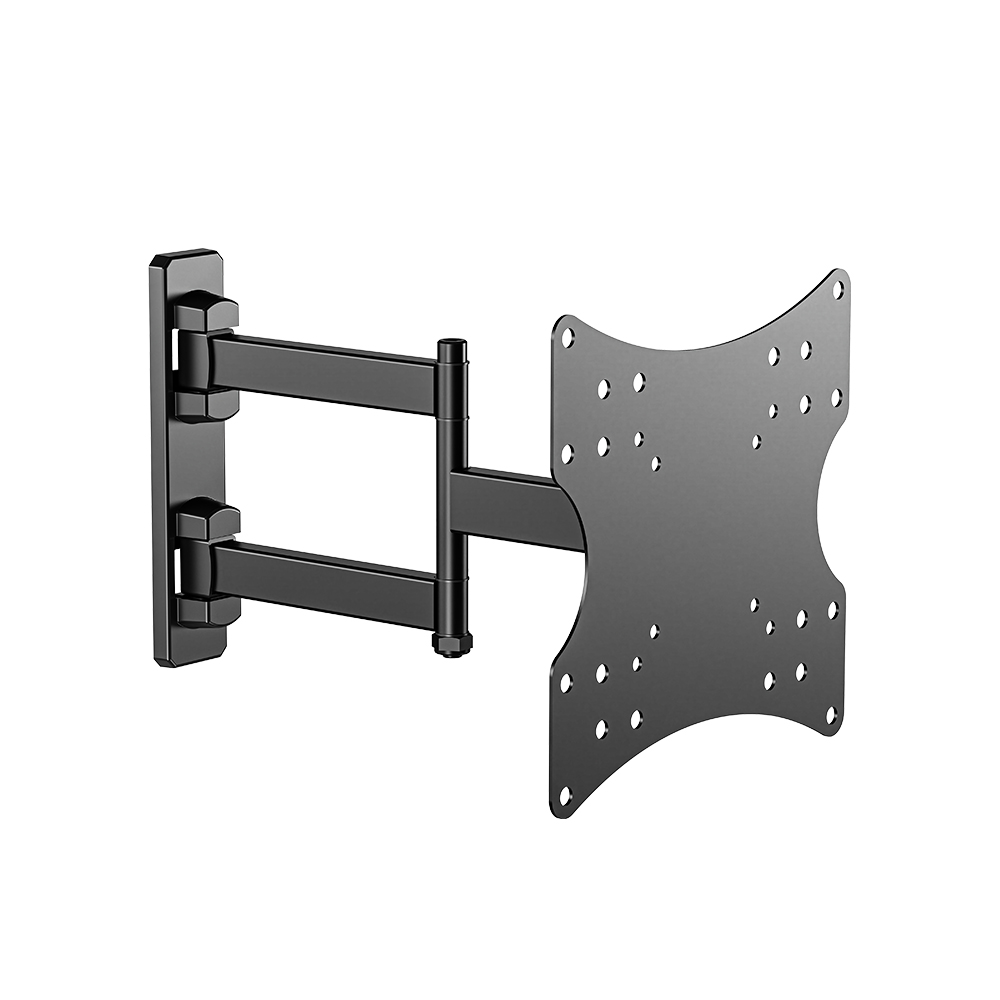

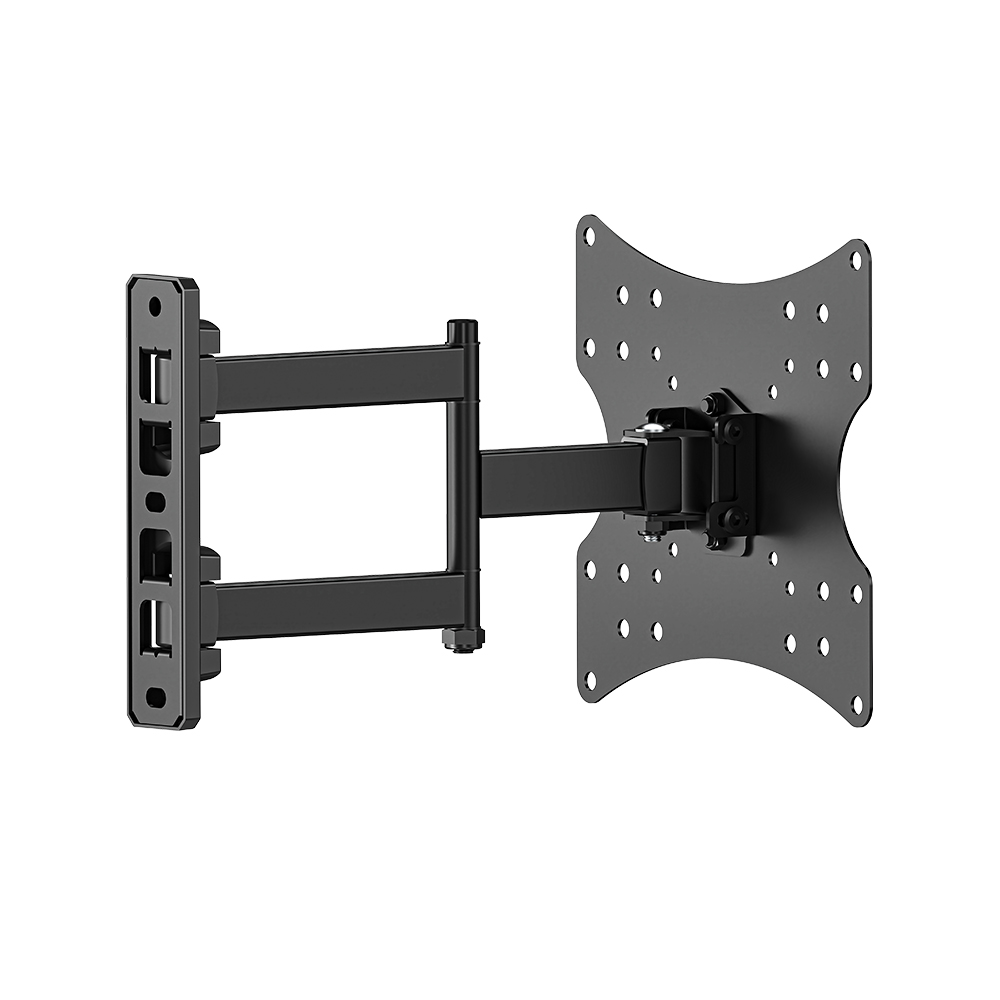

Mitchell and Brown JB-22-43FM Full-motion TV Wall Mount

JB-22-43FM

Find your local retailer
7 Year Warranty

Description

Mitchell and Brown TV – JB-22-43FM – Full-motion TV Wall Mount

Enjoy the full range of motion available with the Mitchell & Brown JB-22-43FM Full Motion TV Bracket.

It’s suitable for screens from 23″ to 42″ in size and up to 30 kg in weight, and is simple to install in your home, office or business.

The bracket tilts from -15° to +15° and swivels 90° left to right to provide perfect viewing angles for whatever room it’s placed in.

There’s a security lock to ensure the screen mounted is secure and it extends from a narrow 49 mm out to 393 mm.

FEATURES

  • Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
  • Swivelling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
  • Keyhole Pattern: allows for easy installation
  • Cable Management: keeps everything organized
General
Model Number
JB-22-43FM
EAN
5050171087428
Product Category
Full-motion TV Wall Mount
Design
Material
Steel, Plastic
Colour
Fine Texture Black
Surface Finish
Powder Coating
Bracket Specifications
Fit Screen Size
22"- 43"
Tilt Range
0~-8°
Swivel Range
+90°~-90°
Mounting Hole Pattern
VESA & Universal
VESA Compatible
75x75,100x100,200x100,200x200
Max. Mounting Hole
200x200
Weight Capacity
30 KG
Installation
Solid Wall, Single Stud
Panel Type
Fixed Panel
Wall Plate Type
Fixed Wall Plate
Screen Freely Tilting
Yes
Cable Management
Yes
Compatible with these Mitchell & Brown TVs
JB-24FV1811 | JB-24DVD1811 | JB-24DVD1811SM | JB-24SM1811A | JB-32FV1811 | JB-32DVD1811SM | JB-32SM1811A | JB-32FH1811DSMA | JB-32FH1811DSMABL | JB-43FV1811 | JB-43SM1811A | JB-43UHD18114KA | JB-43UHD18114KBLA | JB-43QLED1811
Dimensions
Bracket Dimensions (WxHxD)
393 x 230 x 240mm
Profile
49~393mm
